Plastic Pyrolysis Plant

The pyrolysis of plastics waste is a new green technology to recycle plastic and we Beston Machinery have applied this technology in our plant. By using the plastic pyrolysis plant, finally you can get oil from the plastic waste, and you can also get the carbon black and combustible gas, all of which have a wide range of applications.

plastic pyrolysis plant

According to the demands of different customers, we provide three types of plastic pyrolysis plants for customers, including batch operating plant, semi-automatic operating plant and auto continuously operating plant.

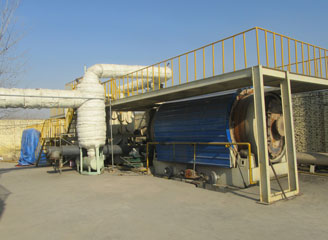

BLJ-6
Model: BLJ-6
Daily capacity: 6MT
Working method: Batch
Total power: 24 kw/h
Reactor size: D2.2*L 5.1m

BLJ-6 Batch Operating Pyrolysis Plant

Model: BLJ-10
Daily capacity: 10 MT
Working method: Batch
Total power: 30 kw/h
Reactor size: D2.8*L6.2 m

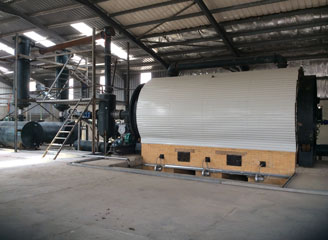

BLL-16
Model: BLL-16
Daily capacity: 20 MT
Working method: Semi-Continuous
Total power: 54 kw/h
Reactor size: D2.8 *L7.1 m

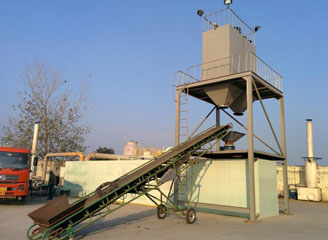

BLL-30
Model: BLL-30
Daily capacity: 30 MT
Working method: Fully continuous
Total power: 53.6 kw/h
Reactor size: L12.5*W2.2*H2.5

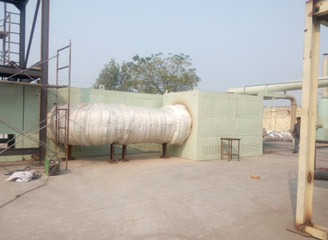

BLL-40
Model: BLL-40
Daily capacity: 40 MT
Working method: Fully continuous
Total power: 62 kw/h
Reactor size: L12.5*W2.2*H2.5

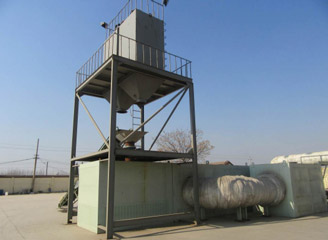

BLL-50
Model: BLL-50
Daily capacity: 50 MT
Working method: Fully continuous
Total power: 84 kw/h
Reactor size: L12.5*W2.2*H2.5

The main differences among the three types of plant are the feeding system, discharging system and the reactor. Here we list the working process of continuous waste plastic pyrolysis machine, hoping you can get more information about our plant here.

How Does the Continuous Pyrolysis Plant Work?

1. Before put the waste plastic into the reactor, you need make sure that the water content can reach the standard. Otherwise, you should dry it first.

2. Heat the pyrolysis reactor with many kinds of fuel. When the temperature reaches a certain degree, the oil gas will be produced. The top output rate interval is 280 degrees to 350 degrees.

3. The manifold can separate the heavy oil gas and light oil gas. For the heavy oil gas, it will be liquefied and drop down into the heavy oil tank. The light oil gas will go into the condenser and be liquefied to oil.

4. The combustible gas produced will be processed by the hydroseal, then it can heat the reactor.

5. Last, the carbon black will be discharged automatically.

waste plastic pyrolysis machine
waste plastic pyrolysis machine

Each set of plastic pyrolysis plant is manufactured with advanced technology and has the features of high efficiency and low cost. The following are some technologies applied in the plant:

1. The first in the world to have created the new heating structure that combines the advantages of burning the reactor directly and heating the main reactor by hot air.

2. The technology of avoiding the reactor of being burnt through by reforming the furnace, which will lengthen the life span of the main reactor for 5 to 8 years and save quite amount of money for customers to maintain and update the plant.

3. The technology of improving the oil yield by another 5% compared with the traditional plant.

4. The technology of guaranteeing 100% safety in the whole working process.

5. The technology of ensuring the released gas reach the European pollution control standards.

If you want to know more information about our plant, such as the plastic pyrolysis plant cost, please feel free to contact us. We are ready to serve you at any time.
