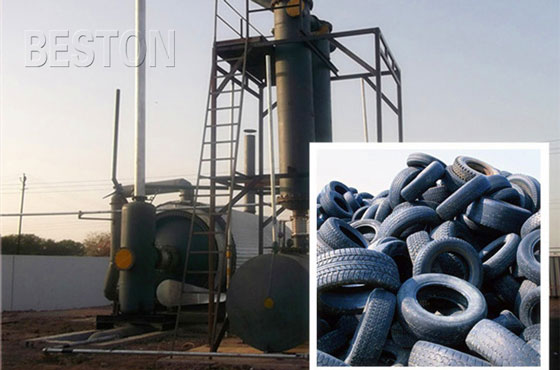

Waste Tire Pyrolysis Plant

Tire Pyrolysis Plant

If you want to recycle the waste tyres in a green and profitable way, Beston waste tire pyrolysis plant for sale is a good choice for you. It used the latest pyrolysis technology and process the waste tyres with high temperature in a oxygen-free condition. Through the waste tyre pyrolysis process, you can get fuel oil, carbon black, steel wire and combustible gas.

Waste Tire Pyrolysis Plant
Waste Tire Pyrolysis Plant

The reason why the waste tyre pyrolysis machine is profitable is that the end products you get can be applied to many areas:

Wide Applications of Tyre Pyrolysis End Products

1. The tire pyrolysis oil can be widely used as fuel oil in industries, such as steel and iron and boiler factories, ceramics, power or chemical industries etc. Or you can refine it into diesel with the waste oil refining plant.

2. Carbon black can be used for construction bricks with clay,.

3. The steel wire can be sold directly or recycled to produce new steel products.

4. As for the combustible gas, it is the fuel which can heat the reactor after being recycled.

Beston waste tire pyrolysis machine for sale
Beston waste tire pyrolysis machine for sale

After knowing the great benefits of the end products, you may wonder how can you get those useful products from waste tyres, and the following may help you.

The Detailed Information of Pyrolysis of Waste Tyres

1. You need to make sure that the size of waste tyres can reach the standard. For the batch operating plant, the size is around 120mm, and for the semi-continuous and fully continuous waste pyrolysis plant, the size is 30-50 mm. If you need the tire pre-treatment plant, we can provide you the waste tyre crusher.

2. Then put the standardized material in the reactor. When the tyre pyrolysis process starts, many parts work together to ensure the process is efficient and eco-friendly. The manifold can separate the heavy oil gas and light oil gas. After this process, the light oil gas will rise to the condenser, and you can get the fuel oil. As for the hydroseal, it can purify the incondensable combustible gas , then the recylced combustible gas can heat the reactor.

3. The carbon black will be discharged after cooling system, and the temperature is around 50-70 degrees.

Our waste tire pyrolysis equipment for sale can be classified into three types, BLJ-6, BLJ-10 batch pyrolysis plant, BLL-16 semi-continuous waste pyrolysis machine and BLL-30, 40, 50 fully continuous operating plant. More details can be found from the following chart.

Item Details
Model BLJ-6 BLJ-10 BLJ-16 BLL-20
Daily Capacity 6T 8T-10T 15-20T 20-24T
Working Method Batch Semi-Continuous Fully Continuous
Raw Materials Waste Plastic, Tyre, Rubber, Oil Sludge
Reactor Size D2.2*L6.0m D2.6*L6.6m D2.8*L7.1m D1.4*L11m
Pattern Horizontal & Rotary
Heating Materials Charcoal, Wood, Fuel Oil, Natural Gas, LPG, etc.
Total Power 24kw/h 30kw/h 54kw/h 71.4kw/h
Floor Area (L*W*H) 30*10*8m 30*10*8m 40*10*8m 45*25*10m
Operating Pressure Normal Pressure Constant Pressure
Cooling Method Water Cooling
Life span 5-8 Years

As a professional and trustful waste tyre pyrolysis plant manufacturer, our plants have been installed in Jordan, Indonesia, Turkey and many other countries. The following reasons make a great contribution to the wide spread of our plants.

BLJ-6 waste tyre pyrolysis plant installed in Turkey
BLJ-6 waste tyre pyrolysis plant installed in Turkey

Great Features of Beston Waste Tire Pyrolysis Plant Available

1. High Oil Output.

The new-type tubular condensers has the features of larger cooling area and better cooling effect, so it can increase oil yield by 5%, and it is also helpful in improving oil quality.


2. Energy Saving.

The purified combustible gas can replace the fuel to heat the pyrolysis reactor when its amount is strong and steady enough.

3. Safety

The safety device, which includes alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system, fire fighting devices can avoid danger in the production process and guarantee the safety of workers and the plant. In addition, the electric cabinet is also the important device.

electric cabinet
electric cabinet

4. Environmental protection

The dedusting system can purify the combustible gas, and the released smoke is pollution-free and can be discharged in the air directly.

5. Longer service life.

The technology of avoiding the reactor of being burnt through by reforming the furnace, which will lengthen the life span of the main reactor for 5 to 8 years.

If you are interested in buying our machine, welcome to visit our factory. Our engineers will show you the working process and test the end-products for you. Or you can send us inquiry to know more about the cost of waste tire pyrolysis plant.
